College-Bike: Scott Igo’s Haro Werks XCR

Scott Igo's Haro Werks XCR
A very interesting and unorthodox piece of equipment, Scott Igo has transformed his Haro Werks XCR cross-country bike into a road-ready machine. A junior at UVM majoring in Philosophy, Scott bought the Haro on eBay three years ago for $15 in what he described as “an impulse buy”. An entry-level hard-tail in Haro’s frame lineup (years ago), no one could ever imagine this bike being used in road races. With a small investment and a little bit of help from his UVM teammates, Scott made it happen.

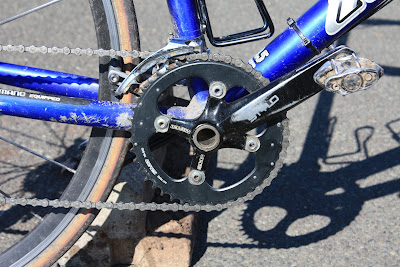

The Truvativ Stylo 44-tooth single ring screams 'cadence!'
There are five main areas of concern when converting an off-road bike to a road bike; drivetrain, handlebars, fork, wheels, and brakes. Scott decided to keep his mountain crankset on the bike, and with a single chainring, there really isn’t a need for a front derailleur. However, he decided to throw one on and use it for a chain guide. The clamp was a little too large, therefore duct tape was applied to give the seat tube that extra few millimeters in diameter. In order to keep the front derailleur in the outer chainring position, a small end-piece of an old seatpost and a washer was wedged between the clamp and the cage.

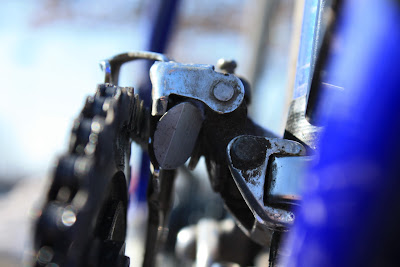

A washer and seatpost piece is wedged in there
To complete the drivetrain, Scott installed a single Suntour friction bar-end shifter to take care of the job, while keeping things simple with Tektro brake-only levers. These of course are mounted on Felt Alloy 6061 handlebars, acquired from UVM teammate and A-racer Matt Buckley. The 40mm Truvativ Hussefelt mountain stem keeps the handling of the bike very ‘responsive’. Scott purchased the Tommaso carbon fork for $25 with shipping, a deal and a half for anything carbon. Also, the Ritchey aluminum wheelset was purchased from another UVM A-racer, Vinnie Scalia.

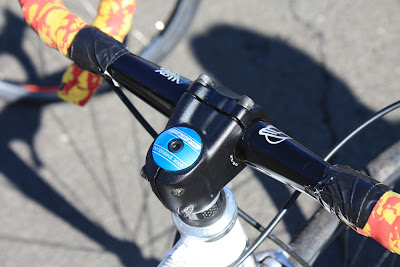

I don't think you can find a shorter stem anywhere
When it came time to mount the brakes, the front caliper of course mounted easily, but there was a serious issue with where to place the rear. With the cantilever brake mounts far too low for even a 650c wheel (he’s using 700c’s of course), and disc brakes illegal in road racing, Scott needed to find a way to mount a brake caliper to the seat tail which was a bit too short to reach the wheel. But after careful thought (and perhaps inspiration by the latest time trial bikes), the best place to place the brake ended up being on the brace between the chainstays, right behind the bottom bracket area.

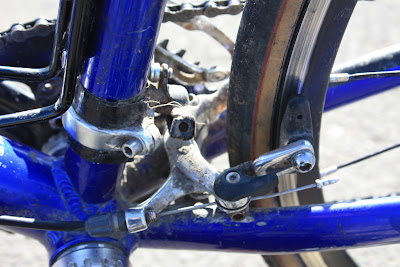

Duct taped front derailleur and smart brake placement
This bike is a true example of the saying, ‘it’s not about the bike’. For those of you wondering, Scott piloted his Haro to a 3rd place in the Time Trial, 4th place in the Criterium, and a close 2nd place in the Circuit race this past weekend at Rutgers, in the Men’s D field. We look forward to seeing what Scott and his bike can do for the rest of the season.

Editor’s Note: Scott is currently tied for the top spot in the D Omnium.
Scott (UVM) and his bike
Frame: Haro Werks XCR
Fork: Tommaso Carbon
Headset: Cane Creek S-3
Stem: Truvativ Hussefelt (40mm)
Handlebars: Felt Alloy 6061 (440mm)
Tapes/grip: Crazy Red/Yellow
Front brake: Shimano SLR
Rear brake: Tektro
Brake levers: Tektro
Front derailleur: Shimano Alivio (Fixed)
Rear derailleur: Exage 300EX
Shift levers: Suntour Friction Bar End (rear)
Cassette: SRAM 11-32
Crankset: Truvativ Stylo (44 single ring)
Pedals: Time ATAC Alium
Wheels: Ritchey Aluminum
Front tire: Michelin Dynamic
Rear tire: Michelin Axial Select Kevlar
Saddle: E3 Form
Seatpost: Titec Hell-Bent
Computer: N/A

More photos of Scott’s bike can be found here.
